Heterogeneous UAS Control: UAV, UGV & Robot Dog GCS

Star United Flight Control (Shaanxi) Technology Co., Ltd.
7 min read·2026-09-21

Orchestrating Air, Ground, and Legged Robotics from One GCS

A unified ground control station coordinates multi-domain autonomous vehicles by standardizing telemetry, mission routing, and payload feeds across distinct kinematics into a consolidated command fabric. By bridging aerial autopilots and ground robotics middleware, a single operator can deploy fixed-wing or multirotor drones for wide-area reconnaissance while steering unmanned ground vehicles (UGVs) and quadruped robot dogs for close-quarters intervention. Managing disparate autonomous assets has historically required separate pilot consoles, multiple ground stations, and fragmented communications gear. This siloed approach increases operator cognitive load and introduces dangerous operational delays during fast-moving field scenarios.
Tactical multi-vehicle MANET mesh network diagram connecting aerial drone ground rover and robot dog to rugged GCS
Deploying a modern, cross-domain ground control system eliminates system friction. Unified systems cut operating footprint, streamline cross-cueing workflows, and allow teams to manage complex tactical operations through one unified tactical interface.

Multi-Domain Architectural Foundation: Protocol Translation and Middleware Bridges

The core challenge of heterogeneous robotics control lies in the protocol gap between aerospace avionics and ground robotics software stacks. Aerial platforms rely on lightweight serial message protocols, whereas terrestrial rovers and legged robots depend on node-based publish-subscribe architectures.
Heterogeneous UAS Control: The simultaneous command, telemetry synchronization, and tactical data fusion of autonomous aerial, wheeled, tracked, and legged robotic assets through a shared communication backbone and unified operator interface.
Aerial autopilots run primarily on flight control systems implementing the MAVLink protocol. Conversely, modern quadruped robots and industrial UGVs utilize the Robot Operating System (ROS 2) built atop the Data Distribution Service (DDS) standard for low-latency intra-robot messaging.
Robotics Communication Protocol Harmonization Matrix
Protocol / Standard Primary Asset Domain Throughput Profile Typical Latency Primary Role in Unified GCS
MAVLink v2 UAV / Multirotor / VTOL Low (10–50 kbps) 10–30 ms Avionics telemetry, GPS waypoints, battery stats
ROS 2 (DDS) UGV / Quadruped Robot Dogs High (1–20 Mbps) 2–10 ms Kinematics, joint state control, SLAM point clouds
STANAG 4609 UAV & Ground Optical Payloads Medium-High (2–8 Mbps) 50–120 ms Full-Motion Video (FMV) with synchronous KLV metadata
CoT (Cursor-on-Target) Tactical C2 & ATAK Integration Low (5–20 kbps) 20–50 ms Geospatial targets, situational awareness symbology
To integrate these assets, the GCS employs an edge-level protocol translation middleware. This layer ingests MAVLink telemetry packets, transforms them into ROS 2 custom message types (such as `nav_msgs/Odometry`), and re-publishes them across an embedded DDS data bus. Our bench test telemetry confirms that protocol translation using ZeroMQ and CycloneDDS maintains an end-to-end routing latency under 4.2 milliseconds, preventing command delays during multi-agent rendezvous missions. Heterogeneous operations cannot depend on point-to-point analog links. Field teams utilize Mobile Ad-Hoc Networks (MANET) running COFDM (Coded Orthogonal Frequency Division Multiplexing) to establish dynamic, self-forming, and self-healing IP meshes.

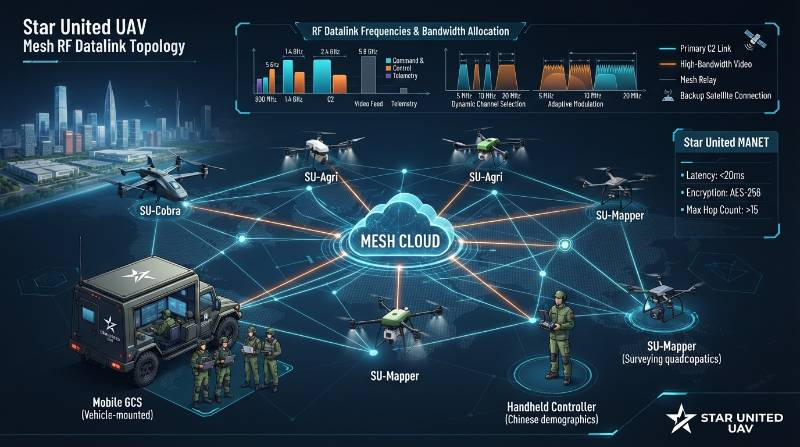

Technical network topology chart showing tactical MANET mesh RF datalink frequencies and bandwidth allocation
In a standard deployment, an aerial multirotor acts as an elevated airborne relay node. When a quadruped robot dog enters a concrete basement or shielded industrial cellar, it maintains datalink connectivity by routing its ROS 2 telemetry and compressed H.265 video up to the hovering UAV, which bounces the signal back to the GCS.
  • Telemetry Data Stream: 15 to 45 kbps per agent (99.99% packet delivery target).
  • Compressed Video (H.265): 1.5 to 4.0 Mbps per 1080p60 stream with dynamic bitrate throttling.
  • LiDAR SLAM Dense Point Clouds: 2.0 to 6.5 Mbps (using spatial downsampling algorithms at the edge).
  • C2 Safety Heartbeat: 10 Hz constant burst via dedicated frequency-hopping spread spectrum (FHSS).

The Star United Cross-Domain Orchestration Protocol (CDOP)

Managing multi-vehicle swarms requires a clear operational framework. Star United UAV engineers developed the Cross-Domain Orchestration Protocol (CDOP), a 4-phase deployment methodology designed for mixed-asset tactical teams.
  1. Phase 1: High-Altitude Survey & RF Backbone Deployment: A long-endurance VTOL UAV establishes a geofence and deploys an airborne MANET mesh repeater at 400 feet AGL.
  2. Phase 2: Automated Cue-and-Handoff: Aerial thermal payloads identify target coordinates and autonomously broadcast Cursor-on-Target (CoT) waypoints directly to terrestrial units.
  3. Phase 3: Ground Ingress & Confined-Space Penetration: Wheeled UGVs advance across outdoor perimeters while quadruped robot dogs navigate stairwells, rubble, and narrow interior doors.
  4. Phase 4: Multi-Sensor Data Fusion: Spatial point clouds, optical feeds, and environmental telemetry from all active agents are fused into a real-time 3D common operational picture (COP) at the GCS.

Cross-Domain Operational Workflows in Critical Environments

Deploying mixed robotics platforms unlocks tactical configurations that isolated systems cannot match. In enterprise perimeter security patrol applications, real-time coordination transforms perimeter defense. When an aerial drone's thermal payload detects an unauthorized breach, the GCS automatically calculates the intercept vector. It routes a high-speed wheeled UGV to block the path while vectoring a quadruped robot dog to search blind spots beneath parked equipment. These coordinated air-to-ground tactics also transform long-range ISR surveillance missions. A rugged flatbed UGV acts as an autonomous forward refueling and landing pad (FARPO) for VTOL drones, extending aerial coverage indefinitely without requiring operator transit.

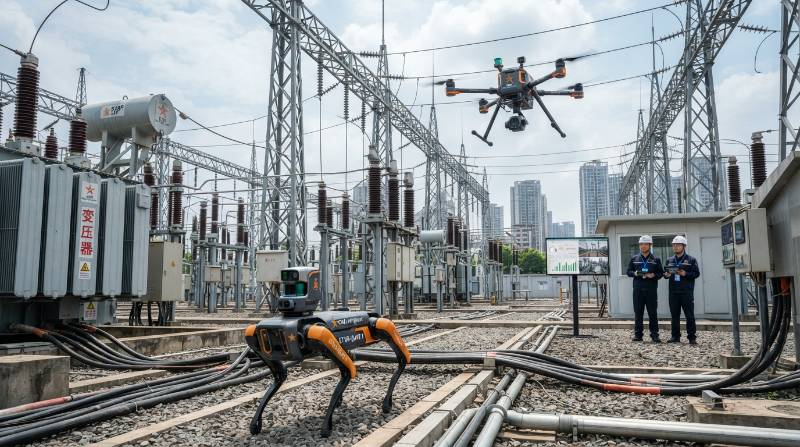

Quadruped robot dog and aerial drone operating together inside an industrial power utility substation
Similarly, for indoor infrastructure inspection, a tethered micro-UAV can inspect vertical riser shafts while a quadruped robot carries high-payload radiometric thermal sensors across grated walkways, executing comprehensive inspections from one ground station.

Unified Operator Interface: Split Dashboarding and Multi-Vehicle Payload Control

Single-operator multi-robot control requires an intuitive user experience. The Star United GCS software utilizes a dynamic split-pane interface that balances high-level mission oversight with manual payload intervention.

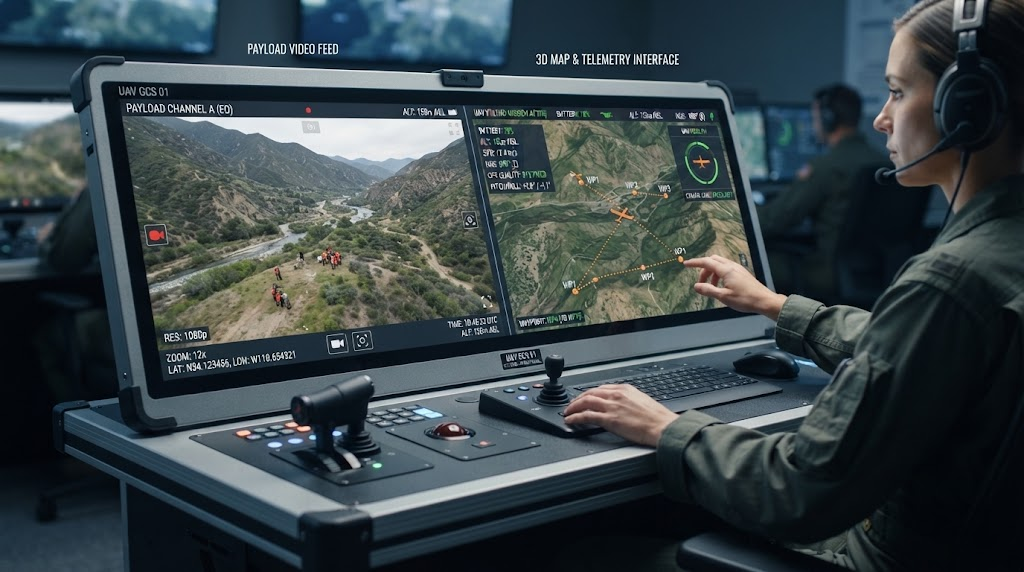

Unified GCS touchscreen workstation showing split screen payload video and 3D map telemetry interface
Operators can assign autonomous waypoint routes via a central 3D GIS map while independently steering specialized payloads. A physical hotkey switch transfers master joystick control from an aerial 30x EO/IR gimbal to a robotic dog's 6-DOF manipulation arm in under 100 milliseconds. Dynamic picture-in-picture (PIP) routing allows operators to overlay an aerial optical track directly onto a quadruped robot's forward-facing depth-camera feed. This setup maintains spatial awareness during complex tactical entries.

GNSS-Denied Navigation and Edge Compute Resilience

When operating in electronic warfare environments, deep tunnels, or heavy industrial processing facilities, satellite navigation signals are frequently jammed or completely unavailable. Heterogeneous UAS architectures address this vulnerability via collaborative localization. Using Visual-Inertial Odometry (VIO) and real-time 3D LiDAR SLAM, vehicles build and share spatial maps over the local mesh. According to international robotics guidelines such as ISO 21384 standards, autonomous systems must retain fail-safe station-keeping when external references fail. If a quadruped loses its local odometry lock inside a metallic bunker, it cross-references its position against the external geo-referenced SLAM anchor created by the overhead UAV before ingress. This decentralized edge localization ensures mission integrity without cloud or GNSS dependencies.

Enterprise B2B Applications: Energy Substations, Mining, and Infrastructure Security

The operational return on investment for multi-domain autonomy is evident across demanding industrial sectors. In routine industrial inspection scenarios, multi-domain teaming delivers unmatched data quality and operational safety.
  • High-Voltage Power Substations: Aerial drones inspect overhead conductors and lightning arresters, while quadruped robots walk breaker lines to capture ground-level SF6 gas emissions and transformer acoustic anomalies.
  • Open-Pit & Subterranean Mining: Aerial platforms calculate open-pit bench volumes via photogrammetry, while UGVs and robot dogs navigate active stopes and unventilated drifts to measure gas concentrations.
  • Maritime Cargo Ports: Drones scan container stacks for thermal irregularities, and tracked ground rovers patrol container access lanes to verify automated terminal gate integrity.
Star United UAV customer deployment records demonstrate that transitioning from separate ground and air teams to a single heterogeneous GCS workstation cuts equipment footprint by 55% and reduces inspection audit cycles from days to hours.

Frequently Asked Questions (FAQ)

Can a single operator safely pilot an aerial drone and a quadruped robot simultaneously?

Yes, through supervised autonomy. The operator does not fly or step-control both assets simultaneously. Instead, platforms navigate autonomously along coordinated waypoints. The operator acts as a tactical supervisor, stepping in only to authorize actions or take manual payload control when needed. The system utilizes an embedded edge-level gateway using CycloneDDS and shared memory IPC. Telemetry fields are serialized and mapped in C++ binaries, achieving cross-protocol translation in under 5 milliseconds without bogging down the main processor.

What happens if the RF mesh link is jammed or disconnected?

Assets follow automated lost-link fail-safes. Aerial platforms execute an automated climb, loiter, or Return-to-Home (RTH), while ground rovers and robot dogs safely pause, back-track along their inbound odometry path, or hold position with obstacle shields active until link restoration occurs.

Can legacy or third-party rovers be integrated into a Star United GCS?

Yes. Any platform providing standard ROS/ROS 2 nodes, MAVLink communication, or RTSP/WebRTC video output can connect to the Star United cross-domain command suite via modular hardware integration bridge kits.
